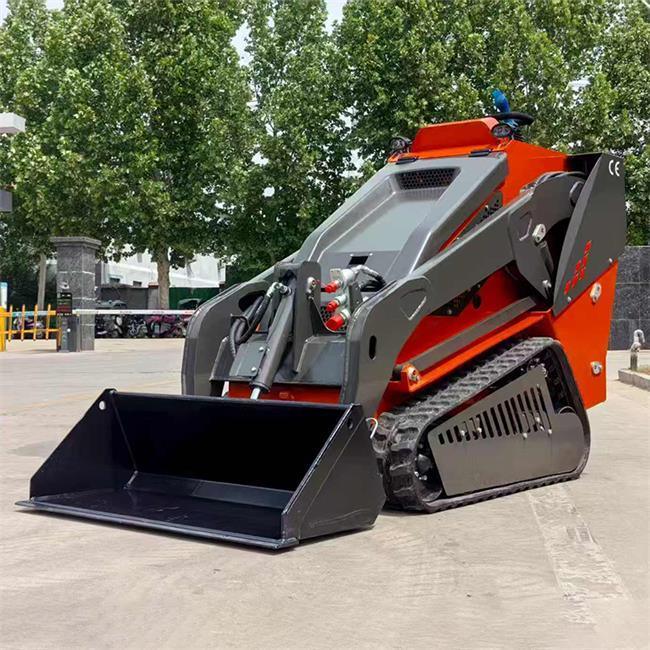

Hightop мини экскаватор
>
|
| Место происхождения | Китай |
| Фирменное наименование | Hightop |
| Сертификация | CE，EPA，ISO，TUV |
| Номер модели | HT1000 |
| Specification | Value |
|---|---|
| Angle of departure | 25° |
| Max dump height | 1610mm |
| Min ground clearance | 128mm |
| Max lift height of boom | 2155mm |
| Total length (No bucket) | 2278mm |
| Max lift height of bucket | 2719mm |
| Track length on ground | 1065mm |
| Total width (No bucket) | 1035mm |
| Bucket width | 1140mm |
| Loading weight | 475kg |
| Machine weight | 1780kg |
| Track width | 200mm |
| Fuel tank capacity | 33L |
| Travel pump flow | 61.6L/min |
| Engine | KUBOTA D1105/PERKINS 403J-11 |
| Rotating speed | 3000rpm |
| Main pump | 2 |
| Max dump angle | 45° |
| Max dump distance | 605mm |
| Height of foot pedal to ground | 228mm |
| Total height | 1670mm |
| Total length (with bucket) | 2835mm |
| Max rotary angle of bucket | 81° |
| Turning radius (with bucket) | 1528mm |
| Trackbase | 835mm |
| Bucket capacity | 0.14m³ |
| Tipping ability | 1100kg |
| Traveling speed | 10km/h |
| Hydraulic system pressure | 21Mpa |
| Hydraulic oil tank capacity | 30L |
| Working pump flow | 47.6L/min |
| Rated power | 18.2KW/18.4KW (25HP) |
| Noise | ≤93Db |
| Valve | 4 |
| Accessories pump | 1 |
