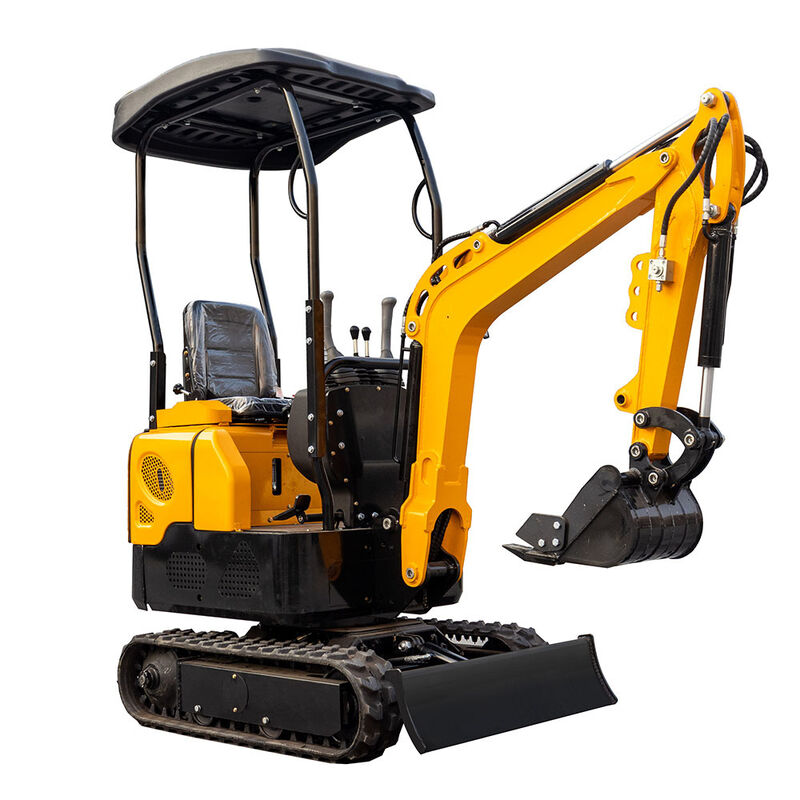

HT10G Mini Excavator with 1000kg Weight
  • HT10G Mini Excavator with 1000kg Weight
  • HT10G Mini Excavator with 1000kg Weight
  • HT10G Mini Excavator with 1000kg Weight
  • HT10G Mini Excavator with 1000kg Weight
  • HT10G Mini Excavator with 1000kg Weight
  • HT10G Mini Excavator with 1000kg Weight
HT10G Mini Excavator with 1000kg Weight

HT10G Mini Excavator with 1000kg Weight

Место происхождения Китай
Фирменное наименование Hightop
Сертификация CE，EPA，ISO，TUV
Номер модели HT10G
Детали продукта
Модель:
HT10G
Масса:
1000 кг
Емкость выкапывая ведра:
0.025cbm/120kg
Минимальный наземный просвет:
100 мм
Выделить:

1000kg Weight Mini Excavator

,

0.025cbm Bucket Capacity Compact Excavator

,

100mm Ground Clearance Mini Digger

Условия оплаты & доставки
Упаковывая детали
Деревянный ящик
Время доставки
5-14 рабочих дней
Условия оплаты
Л/К, Д/А, Д/П, Т/Т, западное соединение
Поставка способности
100 набор в месяц
Характер продукции
HT10G Mini Excavator
Premium Components & Quality Assurance
  • High-quality components from developed countries: Japan main hydraulic pump, Italy main valve, Italy swing motor and traveling motor
  • Domestic KOOP 192 engine for strong power and stable operation, with optional Koop Engine for European emission standards or US BRIGGS & STRATTON Engine for USA emission compliance
  • Hydraulic pipes imported from Continental AG Germany Company for superior leak resistance
  • 100 kg counterweight for enhanced stability and power during operation
  • Structural parts processed by Japan Komatsu supporting manufacturers with complete surface treatment including shot blasting, pickling, phosphating, and spraying for superior paint adhesion and durability
  • Pressure reducing valve device for easier machine startup
Advanced Optional Features
  • Adjustable dozer blade length (84cm-105cm) with working height adjustment from -15cm to 15cm
  • Extendable crawler system from 830mm to 1000mm for navigating narrow spaces
  • 60-degree boom deflection capability for enhanced operational flexibility
Technical Specifications
Weight 1000kg Standard track plate width E 180mm
Digging bucket capacity 0.025cbm/120kg Track gauge F 750mm
Rotation speed 12RMP Wheelbase H 884mm
Climbing capacity 30° Track ground length I 962mm
Engine KOOP 192 (Optional: BRIGGS & STRATTON) Track length J 1204mm
Main Valve Beifang Minimum ground clearance K 100mm
Rated power 10.2KW/2500RPM Tail swing radius L 810mm
Overall length / transport length A/M 4000/2380mm Max. Digging height 2455mm
Overall width B 940mm Max. Dumping height 1605mm
Overall height (cab roof) C 2268mm Max. Digging depth 1855mm
Total track width D 930mm Max. Digging radius on ground 3050mm
Max. digging radius 3130mm
Product Gallery
HT10G Mini Excavator with 1000kg Weight 0 HT10G Mini Excavator with 1000kg Weight 1 HT10G Mini Excavator with 1000kg Weight 2 HT10G Mini Excavator with 1000kg Weight 3 HT10G Mini Excavator with 1000kg Weight 4 HT10G Mini Excavator with 1000kg Weight 5 HT10G Mini Excavator with 1000kg Weight 6 HT10G Mini Excavator with 1000kg Weight 7
